Ecus DataSheet 2.0

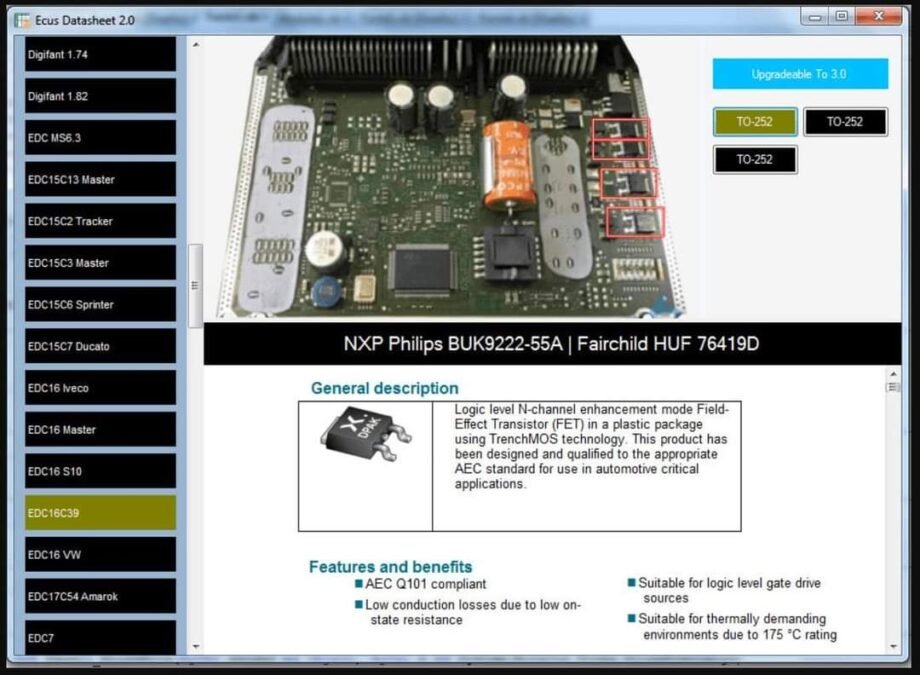

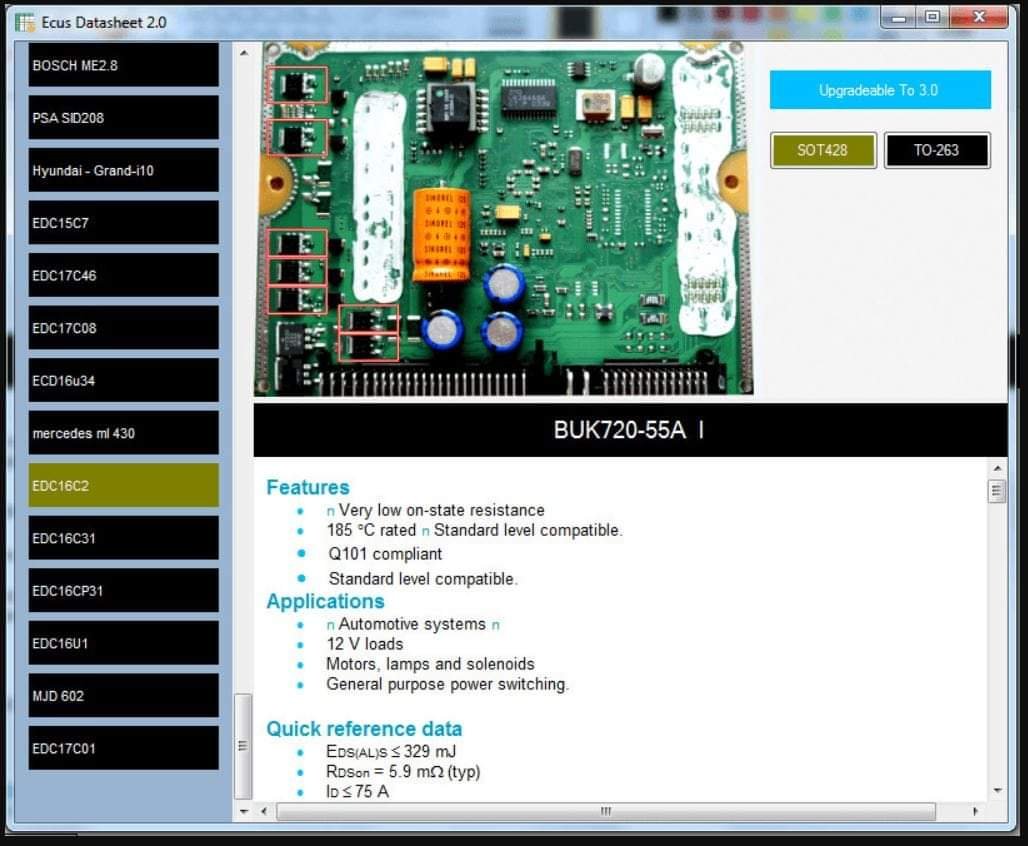

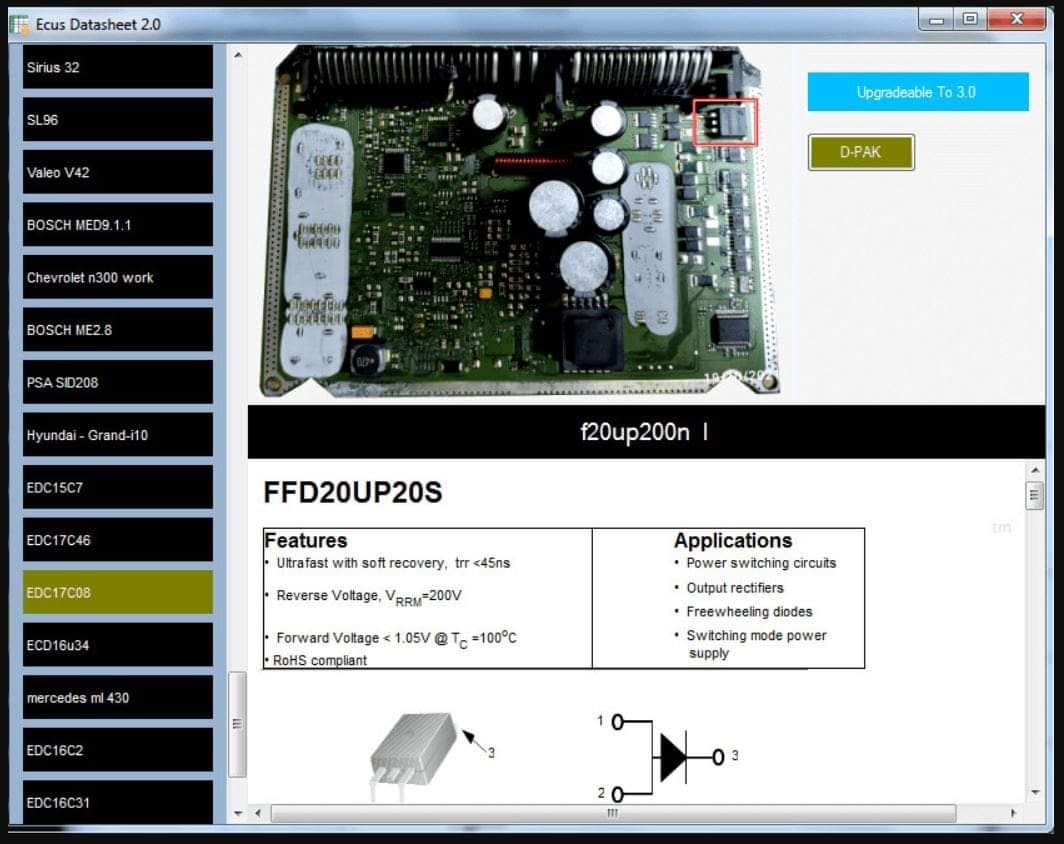

Ecus DataSheet 2.0 is an ECU reference database containing thousands of electronic control unit PCB schematics, component layouts, and technical reference data for automotive ECUs.

The software is designed to support ECU repair, diagnostics, and electronic analysis by providing detailed schematic information across a wide range of ECU families.

Supported ECU Families

Bosch MED17 Series
• MED17.3, MED17.3.3, MED17.3.4, MED17.3.5
• MED17.4, MED17.4.2, MED17.4.4
• MED17.5, MED17.5.1, MED17.5.2
• MED17.5.5, MED17.5.6, MED17.5.20, MED17.5.21
• MED17.5.25
• MED17.7.1, MED17.7.2, MED17.7.3, MED17.7.8
• MED17.8.5, MED17.9.8

Bosch MEV / MEVD Series
• MEV17.2, MEV17.4, MEV17.4.2, MEV17.4.6
• MEVD17.2, MEVD17.2.2, MEVD17.2.3 GPT
• MEVD17.2.4.5, MEVD17.2.4.8, MEVD17.2.4.9
• MEVD17.2.6, MEVD17.2.7
• MEVD17.4.4

Siemens / Continental Systems
• SDI3_4, SDI6
• SID208, SID305, SID801, SID806, SID807, SID901
• SIM2K34, SIM2K, SIMK31, SIMK43, SIMK47
• Simos PCR2.1, Simos 2.4, Simos 3.3, Simos 3PG, Simos 10.11

Additional ECU Systems
• EGS52, EMS 2102, EMS 2103, EMS 3110
• IAW 4DF, IAW 4EV, CFC348V
• Denso 1KZ-TE
• Hitachi Nissan systems
• Ford EEC-V, EEC-VI

Overview

The database provides structured access to ECU hardware schematics and electronic component layouts, supporting technicians in troubleshooting, repair planning, and ECU hardware analysis across multiple vehicle manufacturers and ECU generations.
